25a, 30a, 40a, 50a, 60a, 100a Contactors

Lighting controls for architectural, commercial and residential settings. These devices incorporate digital state-of-the art technology in a choice of styles to suit any user preference. Time and remote control

Contactors

25 - 40 Amp
3 to 10 HP

40 - 50 Amp
10 to 20 HP

60 - 100 Amp
25 to 60 HP

250 Amp
75 to 200 HP

Sealed
35 to 100 Amp.

Lighting and Motor Control Contactors

30 A. 3 Pole 933030
Normally Open (N.O.) contacts
3HP @240V, 7.5HP @460V
20 A. Ballast, 4 KW@ 220VAC
15 A. Tungsten

933030

30 A. 3 Pole NO

40 A. 3 Pole 934020
Normally Open (N.O.) contacts
5HP @240V, 10HP @460V
30 A. Ballast, 5KW@ 220VAC
25 A. Tungsten

934020

40 A. 3 Pole NO

32 A. 4 Pole NC 933040
Normally closed (N.C.) contacts
25 A. Ballast 4KW @ 220V
20 A. Tungsten Lighting

933040

32 A. 4 Pole NC

40 A. 4 Pole NC 934004
Normally closed (N.C.) contacts
40 A. Incandescent or resistive load
30 A. Ballast and General purpose
25 A. Tungsten
Power indicator, no humming core

934004

40 A. 4 Pole NC

40 A. 4 Pole NO 934040
Normally open (N.O.) contacts
40 A. Incandescent or resistive load
35 A. Ballast and General purpose
30 A. Tungsten
Power indicator, no humming core

934040

40 A. 4 Pole NO

50 A. 3 Pole 933050
Normally Open (N.O.) contacts
7.5HP @240V, 15HP @460V
40 A. Ballast, 7 KW@ 220VAC
30 A. Tungsten

933050

50 A. 3 Pole NO

$69.99

24 A. 3 Pole NC 934030
Normally closed (N.O.) contacts
Incandescent or resistive load
18 A. Ballast 5KW @ 220V
10 A. Tungsten & power indicator

9330324

24 A. 3 Pole NO

Timers

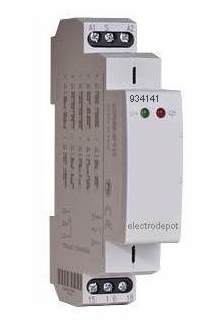

	Timer 0.05s - 10 Hours Selectable timing functions and timer range Time delay settings Repeat On delay, Off delay. Multi voltage input . Plug-in and DIN mount		Digital Timer w Display Field-selectable time ranges Multi function operation 0.1 second to 9999 hours 12 /24 VDC 110/220VAC On Delay, Off Delay Interval Delay, Cycle One-shot, Repeat Cycle
	30A. Power relay 12VDC 30 Amp. 120/277 V,AC 3 HP- 277 V, 1.5 HP - 120V N.O. contact, can be used with a wide variety of control applications. Lighting and motors.		Multi-function Timer 12V, 24V, 120-220VAC 0.1s to 10 days 10 Amp. NO/NC DIN mount. Selectable timing functions and timer
