Features - Specifications

• Time Delay
• Selectable time range 0.1 s to 10 days

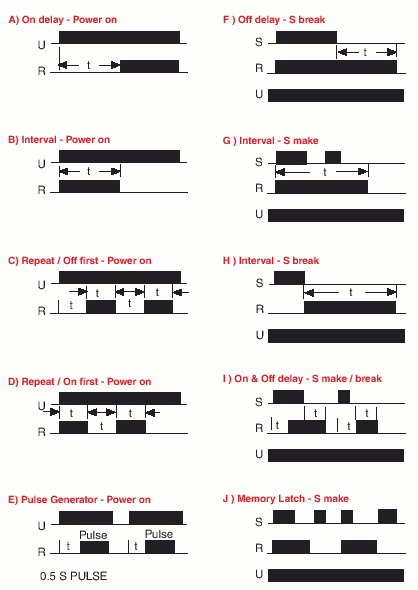

  10 knob selectable functions:
  - ON delay

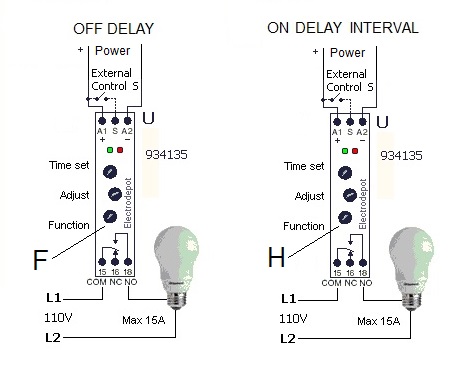

  - OFF delay
  - Interval on trigger open
  - Double interval
  - Delay on release
  - Symmetrical recycler ON first
  - Symmetrical recycler OFF first
  - Special functions latch and single shot
  Automatic or manual start
  Repeatability: ≤0.2%

LED indication time status and power supply
Operating Voltage: 12 to 240 VAC or VDC
Start Switch Closure Time: 20 milliseconds minimum
Power Consumption:  0.7 to 3VA. AC,  0.5 to 1.7 W. DC

• Output
  Type: Relay Contacts, S.P.D.T.
  Rating: 10 amp. max. resistive at 240 volts A.C.;
                 100 mA at 5 VDC min. load current
  Life: Mechanical -10,000,000 operations
            Full Load - 500,000 operations
• 17.5 mm DIN-rail housing
• 35 mm DIN-rail mounting DIN/EN 50 022
• Environmental IP20
  Storage Temperature: -23°C to 70°C,
  Operating Temperature: -20°C to 60°C
  UL Listed  E308660
